Customisable Drill Rigs

Since 1981, Hydrapower Attachments Pty Ltd has been building bespoke drill rigs that are designed specifically for our customers carrying vehicles. We offer a range of models, some of which are strata specific, and they are constructed to the highest quality standards. Our team are available to discuss your specific requirements and work with you to provide the ideal solution from our range of drill rigs outlined below.

Here at Hydrapower Attachments Pty Ltd, we are the number one choice for a diverse range of powered attachments applicable to track steer and wheeled earthmoving equipment. From trenchers and brush mowers to road profilers and purpose build drilling rigs, we are the market leaders.

All of our range is customisable to provide for our clients’ individual needs and the dimensions and capacities are pertinent to each specific model. Subject to geotechnical formations and driller operation, we have included the table below with normal expected drill rigs depths. For further information, please do not hesitate to contact us.

Trekker 2100Scout Mark VExplorer 500Explorer 800HP 850
BQ275m480m670m1400m1500m
NQ200m365m350m800m1250m
HQ150m250m350m800m850m
PQ100m165m230m525m550m
DTH Hammer60m100m140m250m300m
Rotary Mud60m100m140m250m300m

Trekker 2100

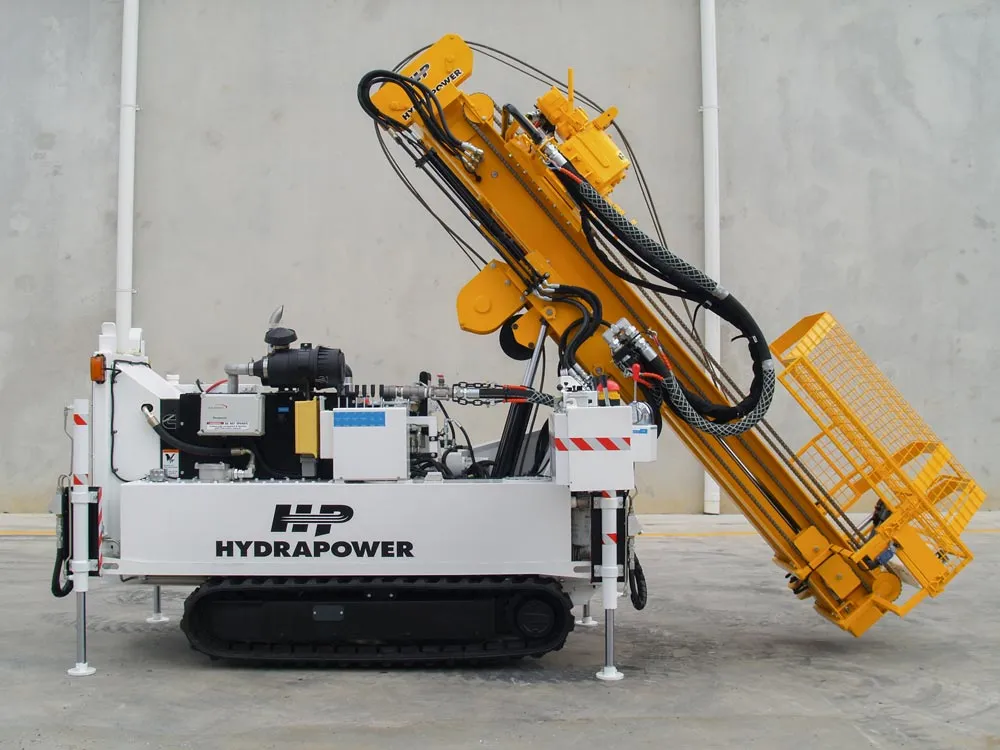

Hydrapower Trekker 2100 Drill Rig

The Trekker 2100 drilling rig is ideal for mounting on crawler track vehicles and trucks from 3 tonnes capacity upwards. It can even be used as a standalone unit thanks to the built-in Cummings 4 cylinder engine and power pack. The unit is designed and manufactured to give long and durable service and it represents an outstanding value for money investment for any business that needs a medium-duty drilling rig.

Trekker 2100
Recommended
Base (Minimum)
Choose from Crawler Tracks,
3T Truck or none at all
Rig Engine4 cylinder Cummins A2300T turbo
motor with 60hp at 2800rpm
Rig HydraulicsSauer Danfoss porportionally
controlled control valves Sauer
closed loop pump on Rotary Drive
Sauer open loop pump on
auxiliary functions
Rotary DriveHydrapower gearbox — steel
casing with floating hollow spindle
and hydraulic head slide two Speed,
0–150rpm & 0–700rpm low speed
torque to 2100Nm, high speed
torque to 474Nm
Head Travel2.1m standard
Main WinchMaximum pull is 2500kg.
Maximum line speed is 28m/min
Wireline Winch1 Off, maximum pull is 780kg.
Maximum line speed is 83m/min
PulldownPull down capacity is 3100kg.
Pull out capacity is 4400kg
MastFitted with 1.8m mast dump for
angle drilling. Standard
length is 3.2m
Braekout TableOptional fixed or split type table
Rod/Auger GuardOptional, can be fitted with hydraulic
lockout on head rotation
Tool CabinetOptional
Rig BodySupplied with operator’s platform,
(4) four stabiliser legs with burst
valve protection and fuel tank.
Rig body and mast painted in
Hydrapower red and black
ToolkitFlags for rear of mast, mast lock
plates, parts and maintenance
manual for rig and engine, and
hydraulic pump test point
pressure gauges

Scout Mark V

Hydrapower Scout Mark V Drill Rig

Our Scout Mark V drilling rigs are custom-built to suit the client’s vehicle and specific drilling requirements. Ideal chassis are a minimum of 13 tonnes GVM 4×4 trucks and tracked crawlers with at least 6.3 tonnes load capacity. The durable Hydrapower gearbox delivers slow running torque values of up to 2100Nm and the main winch pulls at 4200kg.

Scout Mark V
Recommended
Base (Minimum)
4×4 Truck with a 13t GVM and a 4.5m
wheelbase OR Tracked Crawler with
6.3t load capacity
Rig Engine4 cylinder Cummins CPAK-4BTA3.9-C
turbo motor with 125hp at 2200rpm
Rig HydraulicsSauer Danfoss porportionally
controlled control valves Sauer
closed loop pump on Rotary Drive
Sauer open loop pump on
auxiliary functions
Rotary DriveHydrapower Gearbox — steel casing
with floating hollow spindle and
hydraulic head lock and swing.
Two Speed, 0–150rpm & 0–700rpm
low speed torque to 2100Nm, high
speed torque to 474Nm
Head Travel5.1m standard, 6.8m optional
Main WinchMaximum pull is 4200kg maximum
line speed is 28m/min
Wireline Winch(2) Two of in standard configuration.
Maximum pull is 780kg. Maximum
line speed is 83m/min
PulldownElectrically controlled with dial for
speed control. Pull down capacity is
4400kg. Pull out capacity is 6500kg
MastFitted with 1.8m mast dump for
angle drilling. Standard length
is 8.1m, supplied with hydraulically
operated breakout spanner. Supplied
with hydraulic circuit with quick-
connect couplings for optional
breakout table
Braekout TableOptional fixed or split type table
Rod/Auger GuardOptional, can be fitted with hydraulic
lockout on head rotation
Tool CabinetOptional
Rig BodySupplied with operator’s platform,
(4) four stabilizer legs with burst
valve protection and fuel tank.
Rig body and mast painted in
Hydrapower red and black
ToolkitFlags for rear of mast, mast lock
plates, parts and maintenance
manual for rig and engine, and
hydraulic pump test point
pressure gauges

Explorer 500

Hydrapower Explorer 500 Drill Rig

If you are looking to do some serious drilling, you should take a good look at our Explorer 500 drilling rig. This highly efficient unit can be custom-installed on your choice of truck. Our technical team recommends a minimum of 24 tonnes GVM with bogie drive and both diff and cross locks on a 4×6 configuration.

Explorer 500
Recommended
Base (Minimum)
4×6 truck with 24t GVM bogie drive
with diff-lock and cross lock
Rig Engine6 cylinder Cummins CPAK-6BTA turbo
after cooled with 176hp at 2500rpm
Rig HydraulicsSauer Danfoss porportionally
controlled control valves Sauer
closed loop pump on Rotary Drive
Sauer open loop pump on
auxiliary functions
Rotary DriveHydrapower Gearbox — steel casing
with floating hollow spindle and
hydraulic head lock and swing. Two
Speed, 0–225rpm & 0–966rpm. Low
speed torque to 4150Nm, high speed
torque to 966Nm
Head Travel6.8m
Main WinchMaximum pull is 4200kg Maximum
line speed is 28m/min
Wireline Winch(1) One of in standard configuration.
Maximum pull is 780kg. Maximum
line speed is 83m/min
PulldownElectrically controlled with dial for
speed control. Pull down capacity is
7000kg. Pull out capacity is 11500kg
MastFitted with 2.0m mast dump for
angle drilling. Standard length is
10m, supplied with hydraulically
operated breakout spanner and top
pulley swivel. Supplied with
hydraulic circuit with quick-connect
couplings for optional breakout table
Braekout TableOptional split type table
Rod/Auger GuardOptional, can be fitted with hydraulic
lockout on head rotation
Tool CabinetOptional
Rig BodySupplied with operator’s platform,
(4) four stabiliser legs with burst
valve protection and fuel tank.
Rig body and mast painted in
Hydrapower red and black
ToolkitFlags for rear of mast, mast lock
plates, parts and maintenance
manual for rig and engine, and
hydraulic pump test point
pressure gauges

Explorer 800

Hydrapower Explorer 800 Drill Rig

The Explorer 800 is the bigger brother of our Explorer range and comes complete with all of the drilling capacity that you are likely to need in the harshest of environments. The 6 cylinder Cummings diesel unit with after cooler delivers an impressive 176 horse power at 2500rpm. With a main winch line pull of 8000kg, you will have all of the drilling power that you are likely to need.

Explorer 800
Recommended
Host Machine
8×8 or 8×4 Truck with 24 t GVM
bogie drive with diff-lock and
cross lock
Rig Engine6 cylinder Cummins CPAK-6BTA turbo
after cooled with 176hp at 2500rpm
Rig HydraulicsSauer Danfoss proportionally
controlled control valves. Sauer
closed loop pump on rotary drive.
Sauer open loop pump on
auxiliary functions
Rotary DriveHydrapower Gearbox — Steel Casing
with floating hollow spindle and
hydraulic head lock and swing. Two
Speed, 0 –225rpm & 0–966rpm low
speed torque to 4150Nm, high speed
torque to 966Nm
Head Travel6.8m
Main WinchMaximum pull is 8000kg.
Maximum line speed is 60m/min
Wireline Winch(1) One of in standard configuration.
Maximum pull is 780kg. Maximum
line speed is 83m/min
PulldownElectrically controlled with dial for
speed control. Pull down capacity is
7000kg. Pull out capacity is 11500kg
MastFitted with 2.0m mast dump for
angle drilling. Standard length
is 10m, supplied with hydraulically
operated breakout spanner and
top pulley swivel. Supplied with
hydraulic circuit with quick-connect
couplings for optional breakout table
Braekout TableOptional split type table
Rod/Auger GuardOptional, can be fitted with hydraulic
lockout on head rotation
Tool CabinetOptional
Rig BodySupplied with operator’s platform
and offsider’s platform, (4) four
stabiliser legs with burst valve
protection and fuel tank. Rig body
and mast painted in Hydrapower
red and black
ToolkitFlags for rear of mast, mast lock
plates, parts and maintenance
manual for rig and engine and
hydraulic pump test point
pressure gauges

HP 850

Hydrapower Drill Rig HP850

The HP 850 offers the ultimate truck-borne drilling rig and it certainly represents value for money to any discerning business operator. This machine will deliver on the client’s expectations and provide many years of durable service in the harsh Australian environment. 8×8 wheel drive and a minimum of 24 tonnes GVM are recommended to carry the HP 850 to work and back.

Explorer 500
Recommended
Base (Minimum)
8×8 Truck with 24t GVM bogie
drive with diff-lock and cross lock
Dependant on whether On-
board AR is required.
Rig EngineStandard Cummins
(260hp at 2500rpm)
Rig HydraulicsSauer Danfoss proportionally
controlled control valves. Sauer
closed loop pump on rotary
drive. Sauer open loop pump
on auxiliary functions
Rotary DriveHydrapower Gearbox — steel
casing with floating hollow
spindle and hydraulic head lock
and swing. Variable speed,
0–1400rpm low speed torque
to 8700Nm
Head Travel7.0m
Main WinchMaximum pull is 10,000kg.
Maximum line speed is 60m/min.
Overspool protection device
Wireline Winch1400m with auto spooler. Maximum
pull is 2000kg. Maximum line
speed is 140m/min
PulldownHydraulically controlled with dial
for speed control. Pull down capacity
is 10,000kg. Pull out capacity
is 16,500kg
MastFitted with 2.0m mast dump for
angle drilling. Standard length is
10m, supplied with hydraulically
operated breakout spanner and
top pulley swivel. Supplied with
hydraulic circuit with quick-
connect couplings for optional
breakout table
Braekout TableOptional split type table
Rod/Auger GuardOptional, can be fitted with
hydraulic lockout on head rotation
Tool CabinetOptional
Rig BodySupplied with operator’s platform
and offsider’s platform, (4) four
stabiliser legs with burst valve
protection and fuel tank. Rig body
and mast painted in Hydrapower
red and black
ToolkitFlags for rear of mast, mast lock
plates, parts and maintenance
manual for rig and engine and
hydraulic pump test point
pressure gauges

Drill Rig Accessories

Hydrapower manufactures a range of drill rig accessories including automatic SPT hammer, Auto Rod Spinner, a range of winches and break out clamps.

SPT

Auto Rod Spinner

Winches

Break out Clamps
